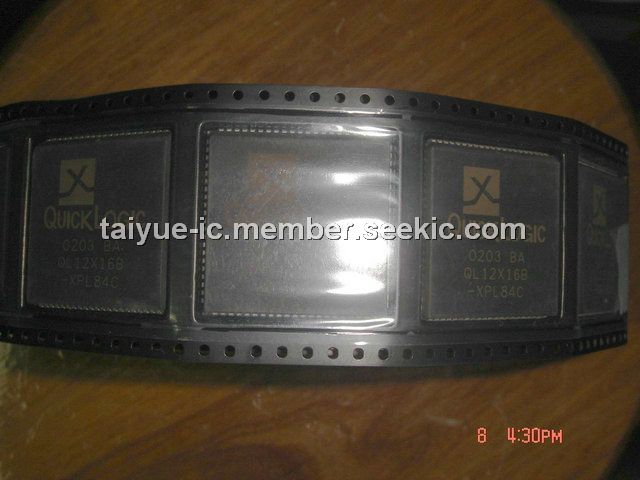

Product Summary

The QL12X16B-XPL84C is a member of the pASIC 1 Family of very-high-speed CMOS user-programmable ASIC devices. The 192 logic cell fieldprogrammable gate array (FPGA) offers 2,000 usable ASIC gates (4,000 usable PLD gates) of high-performance general-purpose logic in a wide variety of package configurations.

Parametrics

QL12X16B-XPL84C absolute maximum ratings: (1)Supply Voltage: -0.5 to 7.0V; (2)Storage Temperature: -65℃ to + 150℃; (3)Input Voltage: -0.5 to VCC +0.5V; (4)Lead Temperature: 300℃; (5)ESD Pad Protection: ±2000V; (6)DC Input Current: ±20 mA; (7)Latch-up Immunity: ±200 mA.

Features

QL12X16B-XPL84C features: (1)Input + logic cell + output delays under 6 ns; (2)Chip-to-chip operating frequencies up to 110 MHz; (3)Internal state machine frequencies up to 150 MHz; (4)Clock skew < 0.5 ns; (5)Input hysteresis provides high noise immunity; (6)68-pin PLCC compatible with QL8x12B; (7)84-pin PLCC compatible with QL16x24B; (8)100-pin TQFP compatible with QL8x12B and QL16x24B; (9)0.65μ CMOS process with ViaLink programming technology.

Diagrams

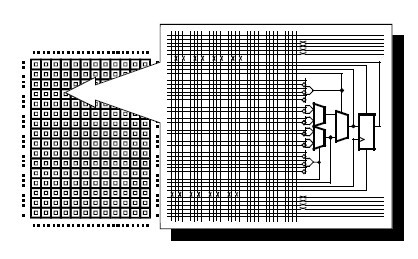

QL12X16B-XPL84C block diagram

QL12x16
QL12x16
