Product Summary

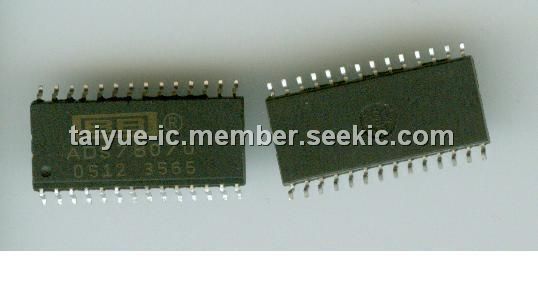

The ADS7807U is a low-power, 16-bit, sampling Analog-to-Digital (A/D) converter using state-of-the-art CMOS structures. The ADS7807U contains a complete 16-bit, capacitor-based, Successive Approximation Register (SAR) A/D converter with sample-and-hold, clock, reference, and microprocessor interface with parallel and serial output drivers. The ADS7807U can acquire and convert 16-bits to within ±1.5LSB in 25μs max while consuming only 35mW max. Laser trimmed scaling resistors provide standard industrial input ranges of ±10V and 0V to +5V. In addition, a 0V to +4V range allows development of complete single-supply systems.

Parametrics

ADS7807U absolute maximum ratings: (1)Analog Inputs: R1IN: ±12V; (2)R2IN: ±5.5V; (3)CAP: VANA + 0.3V to AGND2 – 0.3V; (4)REF: Indefinite Short to AGND2,; (5)Momentary Short to VANA; (6)Ground Voltage Differences: DGND, AGND1, and AGND2: ±0.3V; (7)VANA: 7V; (8)VDIG to VANA: +0.3V; (9)VDIG: 7V; (10)Digital Inputs: –0.3V to VDIG + 0.3V; (11)Maximum Junction Temperature: +165℃; (12)Internal Power Dissipation: 825mW; (13)Lead Temperature (soldering, 10s): +300℃.

Features

ADS7807U features: (1)35mW max power dissipation; (2)50μW power-down mode; (3)25μs max acquisition and conversion; (4)±1.5LSB max INL; (5)DNL: 16 bits No Missing Codes; (6)86dB min sinad with 1kHz input; (7)±10V, 0V TO +5V, AND 0V TO +4V input ranges; (8)single +5V supply operation; (9)parallel and serial data output; (10)pin-compatible with the 12-bit ADS7806; (11)uses internal or external reference; (12)0.3 inch DIP-28 and SO-28.

Diagrams

ADS7807U block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
ADS7807U
ADS7807U

Texas Instruments

ADC (A/D Converters) Low-Power 16-Bit Sampling CMOS

Data Sheet

0-1: $31.66
1-25: $28.48
25-100: $27.17
100-250: $25.64
ADS7807U/1K
ADS7807U/1K

Texas Instruments

ADC (A/D Converters) Low-Power 16-Bit Sampling CMOS

Data Sheet

0-769: $23.38
769-1000: $22.47
ADS7807UB
ADS7807UB

Texas Instruments

ADC (A/D Converters) Low-Power 16-Bit Sampling CMOS

Data Sheet

0-13: $36.11
13-25: $32.24
25-100: $30.46
ADS7807U/1KE4
ADS7807U/1KE4

Texas Instruments

ADC (A/D Converters) Low-Power 16-Bit Sampling CMOS

Data Sheet

0-769: $23.38
769-1000: $22.47
ADS7807U/1KG4
ADS7807U/1KG4

Texas Instruments

ADC (A/D Converters) Low-Power 16-Bit Sampling CMOS

Data Sheet

0-769: $23.38
769-1000: $22.47
ADS7807UB/1K
ADS7807UB/1K

Texas Instruments

ADC (A/D Converters) Low-Power 16-Bit Sampling CMOS

Data Sheet

Negotiable
ADS7807UBE4
ADS7807UBE4

Texas Instruments

ADC (A/D Converters) Low-Power 16-Bit Sampling CMOS

Data Sheet

0-13: $36.11
13-25: $32.24
25-100: $30.46
ADS7807UBG4
ADS7807UBG4

Texas Instruments

ADC (A/D Converters) Low-Power 16-Bit Sampling CMOS

Data Sheet

0-13: $36.11
13-25: $32.24
25-100: $30.46
