Product Summary

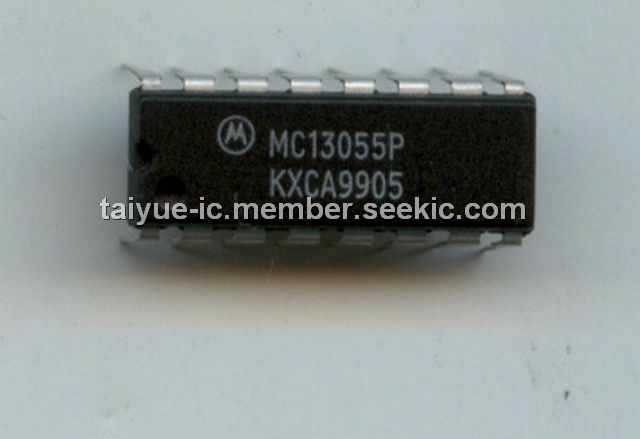

The MC13055P is a wideband FSK receiver. The MC13055P is intended fo RF data link systems using carrier frequencies up to 40 MHz and FSK (frequency shift keying) data rates up to 2.0 M Baud (1.0 MHz). This design is similar to the MC3356, except that it does not include the oscillator/mixer. The IF bandwidth has been increased and the detector output has been revised to a balanced configuration. The received signal strength metering circuit has been retained, as has the versatile data slicer/comparator.
Parametrics
MC13055P absolute maximum ratings: (1)Power Supply Voltage, VCC(max): 15 Vdc; (2)Operating Supply Voltage Range, V2, V4: 3.0 to 12 Vdc; (3)Junction Temperature, TJ: 150℃; (4)Operating Ambient Temperature Range, TA: –40 to +85℃; (5)Storage Temperature Range, Tstg: –65 to +150℃; (6)Power Dissipation, Package Rating, PD: 1.25 W.
Features
MC13055P features: (1)Input Sensitivity 20 μV @ 40 MHz; (2)Signal Strength Indicator Linear Over 3 Decades; (3)Available in Surface Mount Package; (4)Easy Application, Few Peripheral Components.

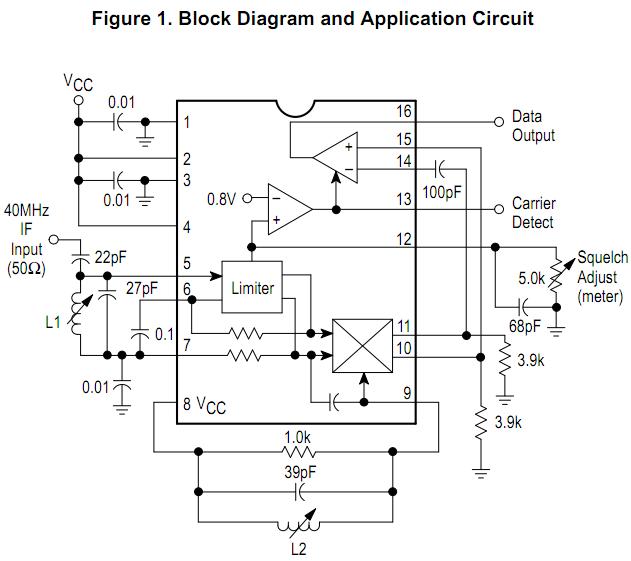

Diagrams
 |
