Product Summary
The TLE4276DV is a low-drop voltage regulator.
Parametrics
TLE4276DV absolute maximum ratings: (1)Voltage VI: –42 to 45 V; (2)Voltage VINH: –42 to 45 V; (3)Voltage VVA: –0.3 to 10 V; (4)Voltage VQ: –1.0 to 40 V; (5)Current IGND: 100 mA; (6)Junction temperature Tj: - 40 to 150 ℃; (7)Storage temperature Tstg: –50 to 150 ℃.
Features
TLE4276DV features: (1)5 V, 8.5 V, 10 V or variable output voltage; (2)Output voltage tolerance ≤ ±4%; (3)400 mA current capability; (4)Low-drop voltage; (5)Inhibit input; (6)Very low current consumption; (7)Short-circuit-proof; (8)Reverse polarity proof; (9)Suitable for use in automotive electronics.

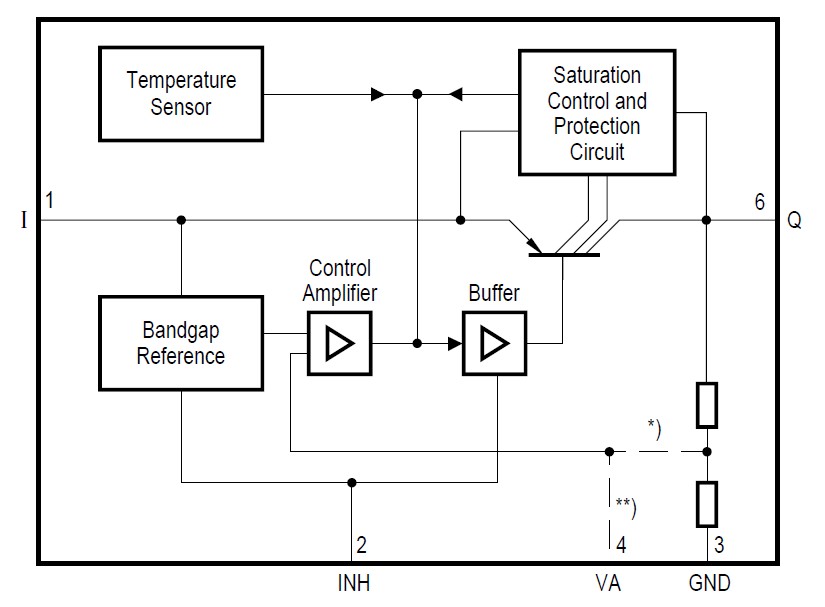

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TLE4276DV |
Infineon Technologies |
Low Dropout (LDO) Regulators LW Drop VOLT REGLTR 5/8.5/10V 400mA |
Data Sheet |
|
|
||||||||||||
 |
TLE4276DV50XT |
Infineon Technologies |
Low Dropout (LDO) Regulators Low Drop Voltage Regulator |
Data Sheet |
|
|
||||||||||||
|
TLE4276DVXT |
Infineon Technologies |
Low Dropout (LDO) Regulators Low Drop Voltage Regulator |
Data Sheet |
|
|
||||||||||||
