Product Summary

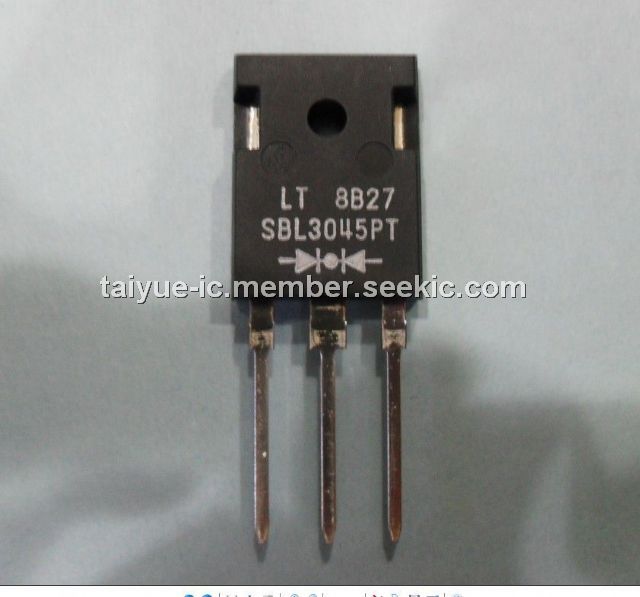

The SBL3045PT is a 30A schottky barrier rectifier.

Parametrics

SBL3045PT absolute maximum ratings: (1)Peak Repetitive Reverse Voltage VRRM: 45V; (2)RMS Reverse Voltage VR(RMS): 31.5V; (3)Average Rectified Output Current @ TC = 95℃ IO: 30 A; (4)Non-Repetitive Peak Forward Surge Current 8.3ms Single Half Sine-Wave Superimposed on Rated Load IFSM: 275A; (5)Forward Voltage Drop @ IF = 15A, TC = 25℃ VFM: 0.55V; (6)Peak Reverse Current at Rated DC Blocking Voltage @ TC = 25℃ IRM: 1.0mA; (7)Typical Total Capacitance CT: 1100 pF; (8)Typical Thermal Resistance Junction to Case RθJc: 2.0 ℃/W; (9)Operating and Storage Temperature Range Tj, TSTG: -65 to +150 ℃.

Features

SBL3045PT features: (1)Schottky Barrier Chip; (2)Guard Ring Die Construction for Transient Protection; (3)Low Power Loss, High Efficiency; (4)High Surge Capability; (5)High Current Capability and Low Forward Voltage Drop; (6)For Use in Low Voltage, High Frequency Inverters, Free Wheeling, and Polarity Protection Application; (7)Lead Free Finish, RoHS Compliant.

Diagrams

SBL3045PT dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
SBL3045PT
SBL3045PT
Diodes Inc.
Schottky (Diodes & Rectifiers) 30A 45V
Data Sheet
Negotiable
