Product Summary

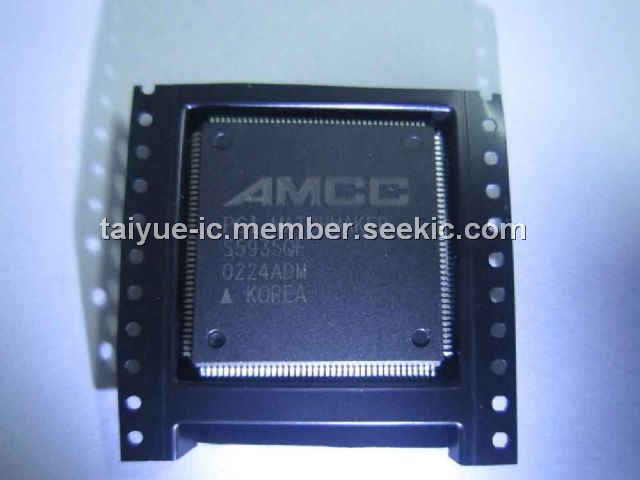

The S5935QF is a PCI 2.1 Compliant Master/Slave Device. The device was developed to break the PC data I/O bottleneck and clearly opens the door to increasing system speed and expansion capabilities. The S5935QF represents the first microprocessor independent bus offering performance more than adequate for the most demanding applications such as full-motion video. The applications of the S5935QF include High Speed Networking, Digital Video Applications, I/O Communications Ports, High Speed Data Input/Output, Multimedia Communications, Memory Interfaces, High Speed Data Acquisition, Data Encryption/Decryption, Intel i960 Interface, General Purpose PCI Interfacing and Existent S5933 Design Upgrades.

Parametrics

S5935QF absolute maximum ratings: (1)Storage Temperature: –55 to 125℃; (2)Supply Voltage (VCC): –0.3 to 7.0 Volts; (3)Input Pin Voltage: –0.5 to VCC + 5.0 Volts; (4)Power Dissipation: 1.05Watts @33 MHz max.

Features

S5935QF features: (1)PCI 2.1 Compliant Master/Slave Device; (2)Full 132 Mbytes/sec Transfer Rate; (3)Supports new Intel 440BX/GX Chipsets; (4)Supports new WinNT Service Pack 2 & 3; (5)PCI Bus Operation DC to 33 MHz; (6)8/16/32 Bit Add-On User Bus; (7)Four Definable Pass-Thru Data Channels; (8)Two 32 Byte Internal FIFOs w/DMA; (9)Synchronous Add-On Bus Operation; (10)Mail Box Registers w/Byte Level Status; (11)Direct Mail Box Data Strobe/Interrupts; (12)Direct PCI & Add-On Interrupt Pins; (13)Optional Non-Volatile Memory Boot Loading; (14)Optional Expansion BIOS/POST Code.

Diagrams

S5935QF block diagram
