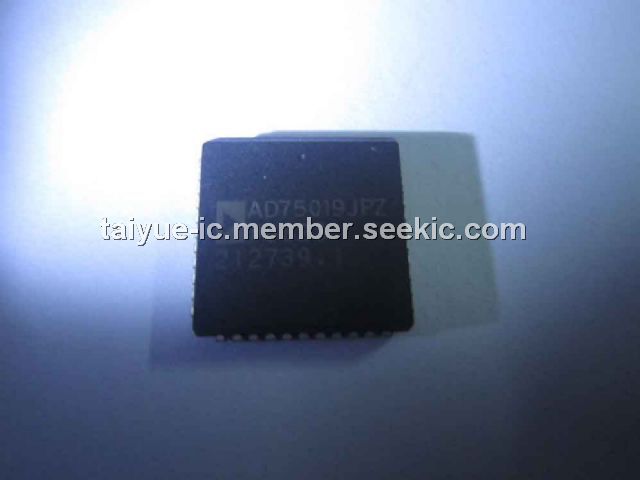

AD75019JPZ

16 × 16 Crosspoint Switch Array, 44PLCC, 24 V or ±12 V, 200 Ω, 2 mW

Rated 5 Rating 5 | reviews | Write a review

Price:: US $13.00~14.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $13.00~14.00

PartNumber:: AD75019JPZ

Brand:: Analog Devices - ADI | Pack: DIP | D/C: 06+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Rosa Wang's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-03-02

From Other Seller

Part Number:AD75019JPZ
US $13.00 - 14.00
A50L-0001-0175

US $100.00 - 100.00 / Piece
(0) Remove
iphone5 data cable

US $4.00 - 5.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

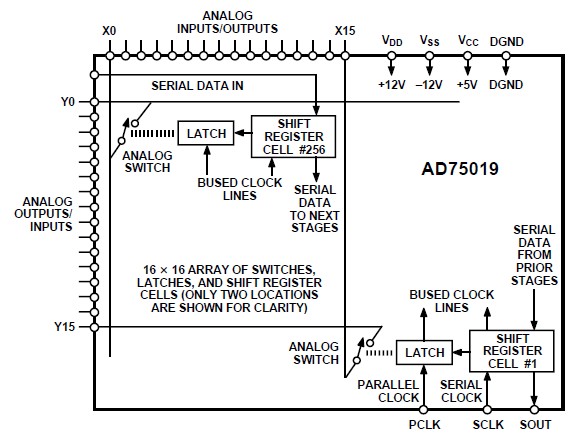

The AD75019JPZ is a 16 × 16 Crosspoint Switch Array. Any of the X or Y pins may serve as an input or output. Any or all of the X terminals may be programmed to connect to any or all of the Y terminals. The switches can accommodate signals with amplitudes up to the supply rails and have a typical onresistance of 150 Ω. The AD75019JPZ is fabricated in Analog Devices’ BiMOS II process. This epitaxial BiCMOS process features CMOS devices for low distortion switches and bipolar devices for ESD protection.

Parametrics

AD75019JPZ absolute maximum ratings: (1)VDD to DGND: –0.5 to +25.2 V; (2)VSS to DGND: –25.2 to +0.5 V; (3)VCC to DGND: –0.5 to +7.0 V; (4)VDD to VSS: –0.5 to +25.2 V; (5)VCC to VSS: –0.5 to +25.2 V; (6)Digital Inputs to DGND: –0.3 to VCC + 0.5 V; (7)Power Dissipation: 1.0 W max at TA ≤75℃; (8)Operating Temperature Range: 0 to +70 ℃; (9)Storage Temperature: –65 to +150 ℃; (10)Lead Temperature: +300 ℃ max at Soldering, 10 sec.

Features

AD75019JPZ features: (1)256 Switches in a 16×16 Array; (2)Wide Signal Range: to Supply Rails of 24 V or ±12 V; (3)Low On-Resistance: 200 Ω Typ; (4)TTL/CMOS/Microprocessor-Compatible Control Lines; (5)Serial Input Simplifies Interface; (6)Serial Output Allows Cascading for More Channels; (7)Low Power Consumption: 2 mW Quiescent; (8)Compact 44-Lead PLCC.
