Product Summary

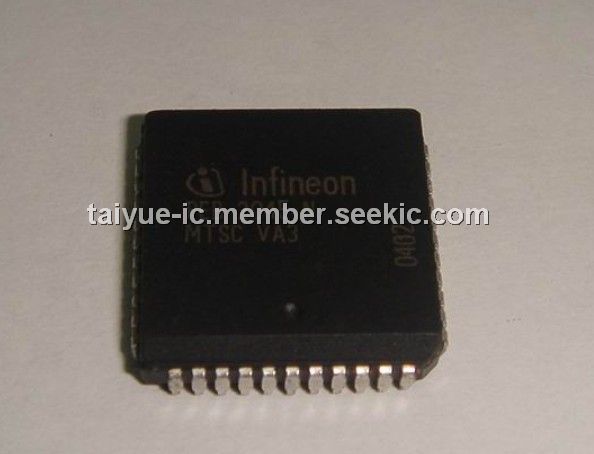

The PEB2045NVA3 is a Memory Time Switch CMOS.
Parametrics
PEB2045NVA3 absolute maximum ratings: (1)Ambient temperature under bias PEB 2045 TA: 0 to 70 ℃; (2)Storage temperature PEB 2045 Tstg: – 65 to 125 ℃; (3)Ambient temperature under bias PEF 2045 TA: – 40 to 85 ℃; (4)Storage temperature PEF 2045 Tstg: – 65 to 125 ℃; (5)Voltage on any pin with respect to ground VS: – 0.4 to VDD + 0.4 V.
Features
PEB2045NVA3 features: (1)Time/space switch for 2048-, 4096- or 8192-kbit/s PCM systems; (2)Switching of up to 512 incoming PCM channels to up to 256 outgoing PCM channels; (3)16-input and 8-output PCM lines; (4)Different kinds of modes (2048, 4096, 8192 kbit/s or mixed mode); (5)Configurable for primary access and standard applications; (6)Programmable clock shift with half clock step resolution for input and output in primary access configuration; (7)Configurable for a 4096- and 8192-kHz device clock; (8)Tristate function for further expansion and tandem operation; (9)Tristate controsignals for externadrivers in primary access configuration; (10)2048-kHz clock output in primary access configuration; (11)Space switch mode; (12)8-bit mP interface; (13)Single + 5 V power supply; (14)Advanced low power CMOS technology; (15)Pin and software compatible to the PEB 2040.
Diagrams
 |
