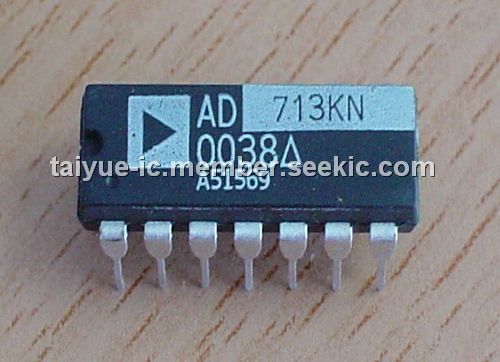

Product Summary

The AD713KN is a quad operational amplifier, consisting of four AD711 BiFET op amps. The precision monolithic op amp offers excellent dc characteristics plus rapid settling times, high slew rates, and ample bandwidths. In addition, the AD713KN provides the close matching ac and dc characteristics inherent to amplifiers sharing the same monolithic die. The single-pole response of the AD713KN provides fast settling: 1 μs to 0.01%. This feature, combined with its high dc precision, makes the AD713KN suitable for use as a buffer amplifier for 12-or 14-bit DACs and ADCs. It is also an excellent choice for use in active filters in 12-, 14- and 16-bit data acquisition systems. The AD713KN is internally compensated for stable operation at unity gain and is available in seven performance grades. The AD713KN is rated over the commercial temperature range of 0℃ to 70℃.

Parametrics

AD713KN absolute maximum ratings: (1)Supply Voltage: ±18 V; (2)Input Voltage: ±18 V; (3)Differential Input Voltage: +VS and –VS; (4)Storage Temperature Range (Q): -65℃ to +150℃; (5)Storage Temperature Range: -65℃ to +125℃; (6)Operating Temperature Range: 0℃ to 70℃; (7)Lead Temperature Range (Soldering 60 sec): 300℃.

Features

AD713KN features: (1)1 ms Settling to 0.01% for 10 V Step; (2)20 V/ms Slew Rate; (3)0.0003% Total Harmonic Distortion (THD); (4)4 MHz Unity Gain Bandwidth; (5)0.5 mV max Offset Voltage (AD713K); (6)200 V/mV min Open Loop Gain (AD713K); (7)2 mV p-p typ Noise, 0.1 Hz to 10 Hz; (8)True 14-Bit Accuracy; (9)Available in 16-Pin SOIC, 14-Pin Plastic DIP and; (10)Hermetic Cerdip Packages.

Diagrams

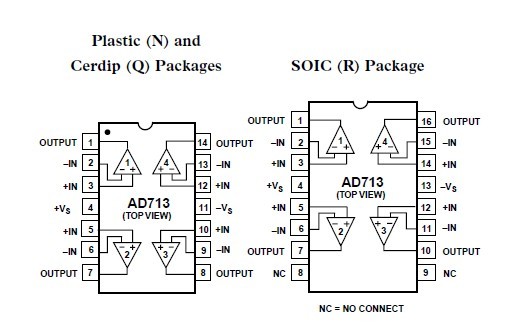

AD713KN CONNECTION DIAGRAMS
