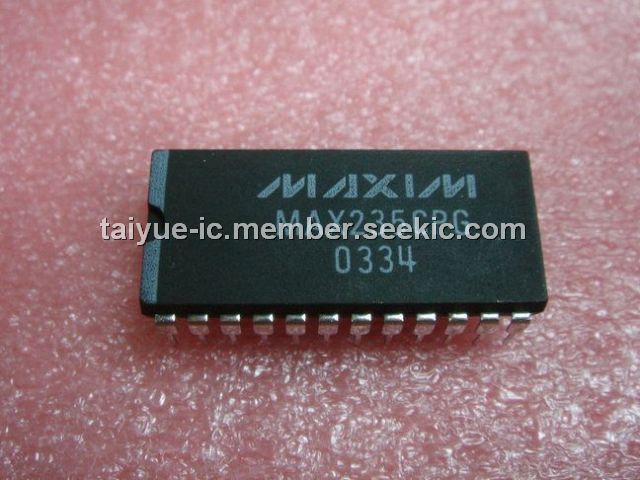

Product Summary
The MAX235CPG is a line driver/receiver which is intended for all EIA/TIA-232E and V.28/V.24 communications interfaces, particularly applications where ±12V is not available. The MAX235CPG is especially useful in battery-powered systems, since its low-power shutdown mode reduces power dissipation to less than 5μW. The applications of the MAX235CPG include: Portable Computers, Low-Power Modems, Interface Translation, Battery-Powered RS-232 Systems, Multidrop RS-232 Networks.
Parametrics
MAX235CPG absolute Maximum Ratings: (1)Supply Voltage (VCC): -0.3V to +6V; V+: (VCC - 0.3V) to +14V; (2)V-: +0.3V to +14V; (3)Input Voltages TIN: -0.3V to (VCC - 0.3V); RIN: ±30V; TOUT: ±15V; (4)Output Voltages TOUT: ±15V; ROUT: -0.3V to (VCC + 0.3V); (5)Operating Temperature Ranges: -40℃ to +85℃; (6)Storage Temperature Range: -65℃ to +160℃; (7)Lead Temperature (soldering, 10s): +300℃.
Features
MAX235CPG features: (1)For Low-Voltage, Integrated ESD Applications: +3.0V to +5.5V, Low-Power, Up to 1Mbps, True RS-232 Transceivers Using Four 0.1μF External Capacitors; (2)For Low-Cost Applications ±15kV ESD-Protected, +5V, 1μA, Single RS-232 Transceiver with AutoShutdown.

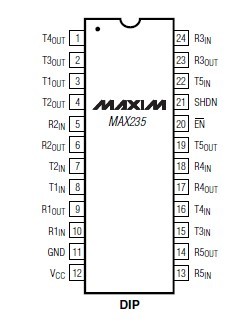

Diagrams
 |
