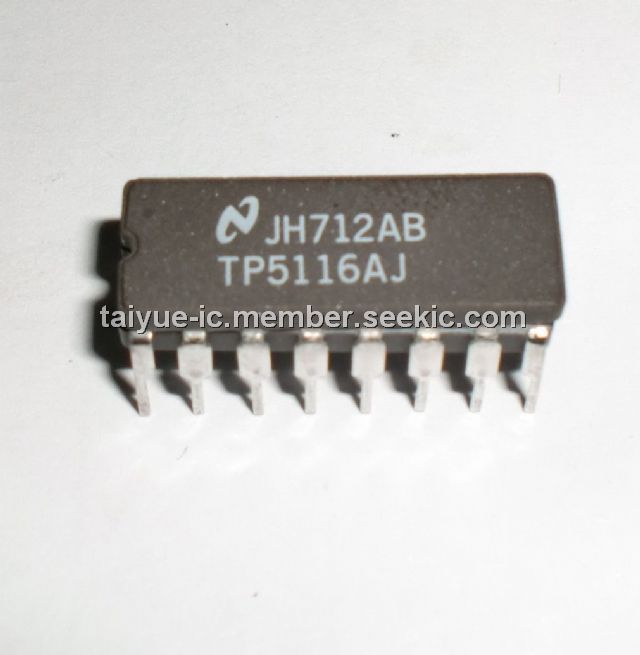

Product Summary
The TP5116AJ is a monolithic PCM CODEC implemented with double-poly CMOS technology. The device is intended for μ-law applications. The TP5116AJ contains separate D/A and A/D circuitry, all necessary sample and hold capacitors, and internal auto-zero circuits. It also contains a precision internal voltage reference, eliminating the need for an external reference. The TP5116AJ is intended to be used with the TP3040 monolithic PCM filter which provides the input anti-aliasing function for thr encoder, smooths the output of the decoder and corrects for thr sin x/x distortion introduced by the decoder sample and hold output.
Parametrics
TP5116AJ absolute maximum ratings: (1)Operating temperature: -25℃ to +125℃; (2)Storage temperature: -65℃ to +150℃; (3)V+ with respect to digital ground: 7V; (4)V- with respect to digital ground: -7V; (5)Voltage at any analog input or outout: V- - 0.3V to V+ + 0.3V; (6)Voltage at any digital input or outout: GNDD - 0.3V to V+ + 0.3V; (7)Lead temperature: 300℃.
Features
TP5116AJ features: (1)μ-law coding (sign plus magnitude formal); (2)Synchronous or asynchronous operation; (3)Precision voltage reference on-chip; (4)Internal sample-and-hold capacitors; (5)Internal auto-zero circuit; (6)Low operation power-40mW typical; (7)±5V operation; (8)TTL compatible digital interface.

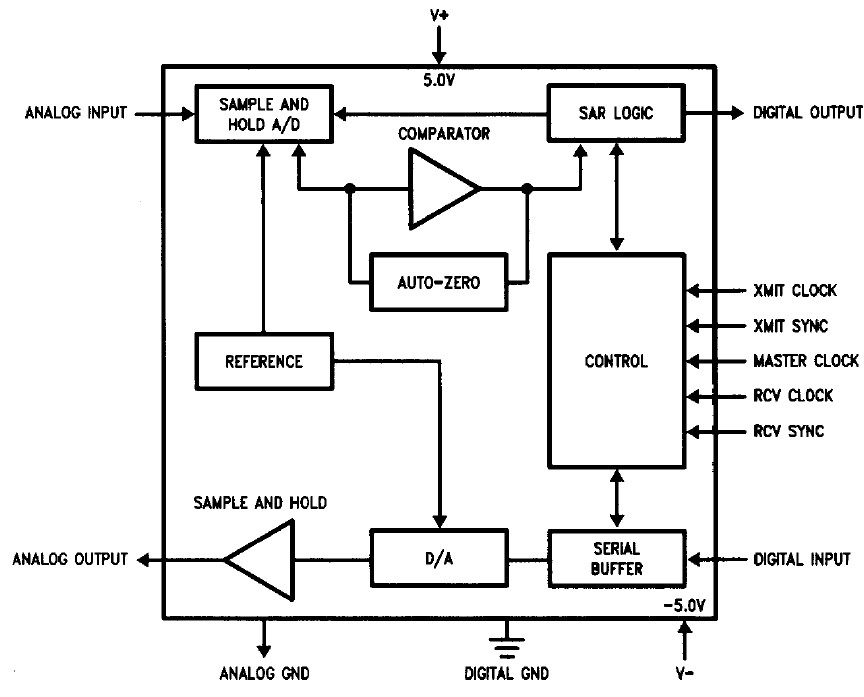

Diagrams
 |
