Product Summary

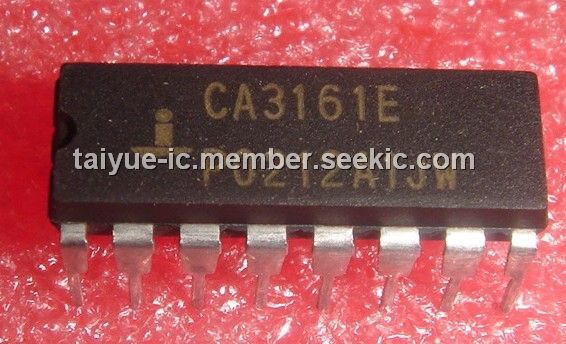

The CA3161E is a Decoder/Driver that performs the BCD to seven segment decoding function and features constant current segment drivers. When used with the CA3162E A/D Converter the CA3161E provides a complete digital readout system with a minimum number of external parts.

Parametrics

CA3161E absolute maximum ratings: (1)DC VSUPPLY (Between Terminals 1 and 10):+7.0V; (2)Input Voltage (Terminals 1, 2, 6, 7):+5.5V; (3)Output Voltage: Output Off:+7V, Output On:+10V; (4)Maximum Junction Temperature:150℃; (5)Maximum Storage Temperature Range:-65℃ to 150℃; (6)Maximum Lead Temperature (Soldering 10s):300℃.

Features

CA3161E features: (1)TTL Compatible Input Logic Levels; (2)25mA (Typ) Constant Current Segment Outputs; (3)Eliminates Need for Output Current Limiting Resistors; (4)Pin Compatible with Other Industry Standard Decoders; (5)Low Standby Power Dissipation: 18mW (Typ).

Diagrams

CA3161E block diagram
