Product Summary

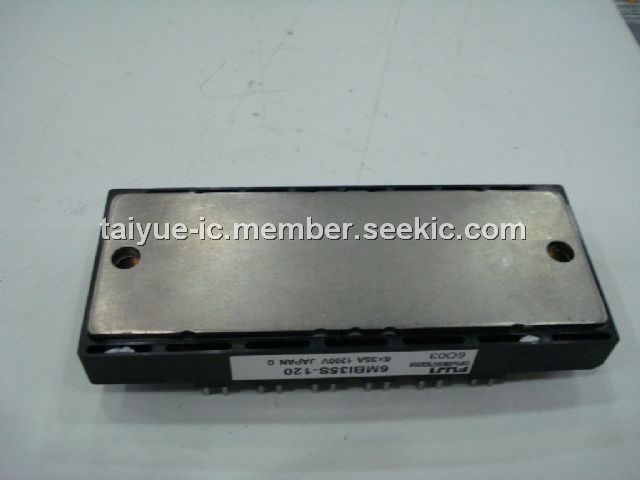

The 6MBI35S120 is an IGBT module. It is suitable for Inverter for motor drive, AC and DC servo drive amplifier, Uninterruptible power supply and Industrial machines, such as welding machines.

Parametrics

6MBI35S120 absolute maximum ratings: (1)Collector-Emitter voltage, VCES: 1200V; (2)Gate-Emitter voltage, VGES: ±20V; (3)collector current, continuous, IC: 50A at TC=25℃; 35A at TC=80℃; 1ms, IC pulse: 100A at Tc=25℃; 70A at Tc=80℃; (4)Max. power dissipation (1 device), PC: 240W; (5)Operating temperature, Tj: 150℃; (6)Storage temperature, Tstg: -40 to 125℃; (7)Isolation voltage, Vis: AC 2500V.

Features

6MBI35S120 features: (1)Compact package; (2)P.C.board mount; (3)Low VCE(sat).

Diagrams

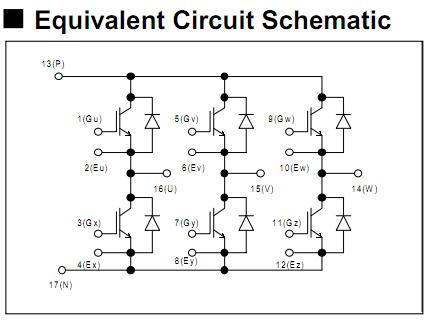

6MBI35S120 equivalent circuit schematic
