Product Summary
The SAF-C515C-8EM is a 8-bit single-chip microcontroller. The device provides two basic power saving modes, the idle mode and the power down mode. Additionally, a slow down mode is available. The SAF-C515C-8EM reduces the internal clock rate in normal operating mode and it can be also used for further power reduction in idle mode.
Parametrics
SAF-C515C-8EM absolute maximum ratings: (1)Storage temperature, TST: -65 to 150℃; (2)Voltage on VDD pins with respect to ground (VSS), VDD: -0.5 to 6.5V; (3)Voltage on any pin with respect to ground (VSS), VIN: -0.5 VDD+0.5V; (4)Input current on any pin during overload condition, -10 to 10 mA; (5)Absolute sum of all input currents during overload condition, –100 mA to +100mA; (6)Power dissipation, PDISS: 1W.
Features
SAF-C515C-8EM features: (1)Full upward compatibility with SAB 80C515A; (2)On-chip program memory (with optional memory protection); (3)256 bytes on-chip RAM; (4)2 Kbytes of on-chip XRAM; (5)Up to 64 Kbytes external data memory; (6)Superset of the 8051 architecture with 8 datapointers; (7)Up to 10 MHz external operating frequency (1 μs instruction cycle time at 6 MHz external clock); (8)On-chip emulation support logic (Enhanced Hooks Technology); (9)Current optimized oscillator circuit and EMI optimized design.

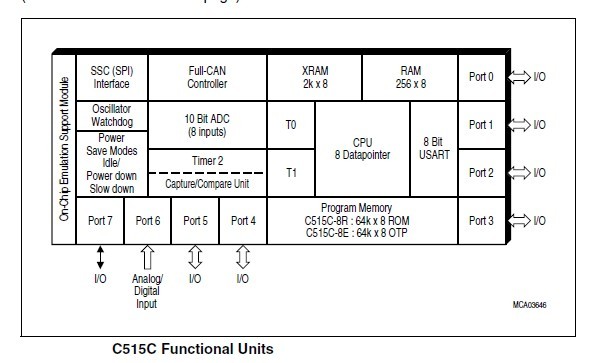

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SAF-C515C-8EM CA |
Infineon Technologies |
8-bit Microcontrollers (MCU) 8 BIT OTP |
Data Sheet |
Negotiable |
|
||||||||||
