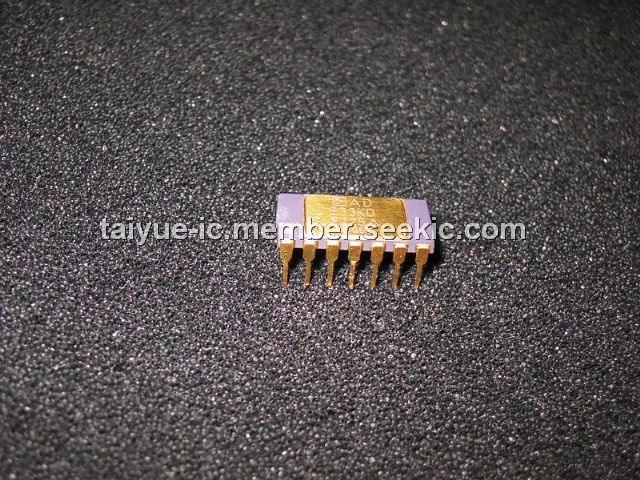

AD533KD

single 8-bit DAC, CAN, –0.3 V to +7 V, 115μA, Analog Devices

Rated 5 Rating 5 | reviews | Write a review

Price:: US $6.40~7.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $6.40~7.00

PartNumber:: AD533KD

Brand:: Analog Devices - ADI | Pack: DIP | D/C: 08+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Rosa Wang's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-02-29

From Other Seller

Part Number:AD533KD
US $6.40 - 7.00
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
A50L-0001-0175

US $100.00 - 100.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

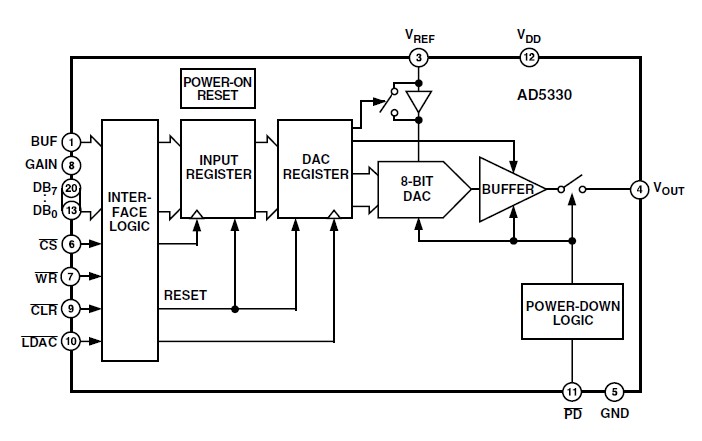

The AD533KD is a single 8-bit DAC. It operates from a 2.5 V to 5.5 V supply consuming just 115μA at 3V, and features a power-down mode that further reduces the current to 80nA. The AD533KD incorporates an on-chip output buffer that can drive the output to both supply rails, while the AD533KD allows a choice of buffered or unbuffered reference input. The applications of the AD533KD include (1)Portable Battery-Powered Instruments; (2)Digital Gain and Offset Adjustment; (3)Programmable Voltage and Current Sources; (4)Programmable Attenuators; (5)Industrial Process Control.

Parametrics

AD533KD absolute maximum ratings: (1)VDD to GND: –0.3 V to +7 V; (2)Digital Input Voltage to GND: –0.3 V to VDD + 0.3 V; (3)Digital Output Voltage to GND: –0.3 V to VDD + 0.3 V; (4)Reference Input Voltage to GND:–0.3 V to VDD + 0.3 V; (5)VOUT to GND: –0.3 V to VDD + 0.3 V; (6)Operating Temperature Range Industrial (B Version): –40℃ to +105℃; (7)Storage Temperature Range: –65℃ to +150℃; (8)Junction Temperature: 150℃; (9)TSSOP Package Power Dissipation: (TJ max – TA)/θJA mW; θJA Thermal Impedance (20-Lead TSSOP): 143℃/W; θJA Thermal Impedance (24-Lead TSSOP): 128℃/W; θJA Thermal Impedance (20-Lead TSSOP): 45℃/W; θJC Thermal Impedance (24-Lead TSSOP): 42℃/W; (10)Reflow Soldering Peak Temperature: 220 +5/–0℃; Time at Peak Temperature: 10 sec to 40 sec.

Features

AD533KD features: (1)Low Power Operation: 115 μA @ 3 V, 140 μA @ 5 V; (2)Power-Down to 80 nA @ 3 V, 200 nA @ 5 V via PD Pin; (3)2.5 V to 5.5 V Power Supply; (4)Double-Buffered Input Logic; (5)Guaranteed Monotonic by Design Over All Codes; (6)Buffered/Unbuffered Reference Input Options; (7)Output Range: 0–VREF or 0–2 VREF; (8)Power-On Reset to Zero Volts; (9)Simultaneous Update of DAC Outputs via LDAC Pin; (10)Asynchronous CLR Facility; (11)Low Power Parallel Data Interface; (12)On-Chip Rail-to-Rail Output Buffer Amplifiers; (13)Temperature Range: –40℃ to +105℃.
