Product Summary

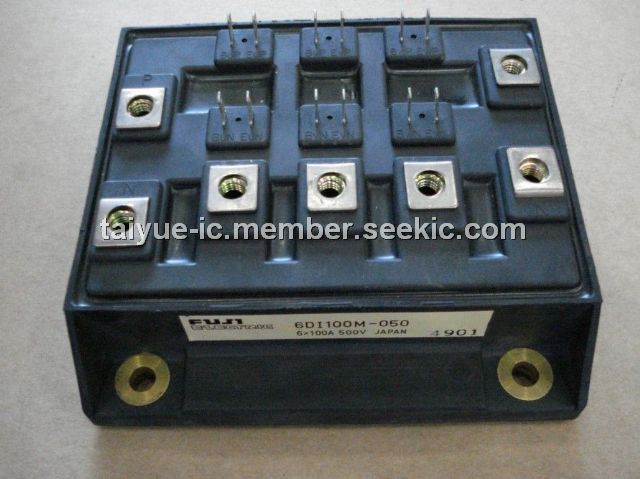

The 6DI100M-050 is a power transistor module. It is suitable for power switching, AC motor controls, DC motor controls and uninterruptible power supply.

Parametrics

6DI100M-050 absolute maximum ratings: (1)VCBO: 600V; (2)VCEO: 600V; (3)VCEO(SUS): 450V; (4)VEBO: 10V; (5)IC: 100A; (6)ICP: 200A; (7)-IC: 100A; (8)IB: 6A; (9)IBP: 12A; (10)PC: 400W; (11)PC: 2400W; (12)Tj: 150℃; (13)Tstg: -40 to 125℃; (14)m: 750g; (15)Viso: 2500V; (16)mounting: 3.5Nm; (17)terminals: 1.7Nm.

Features

6DI100M-050 features: (1)high DC current gain; (2)high speed switching; (3)including free wheeling diode; (4)insulated type.

Diagrams

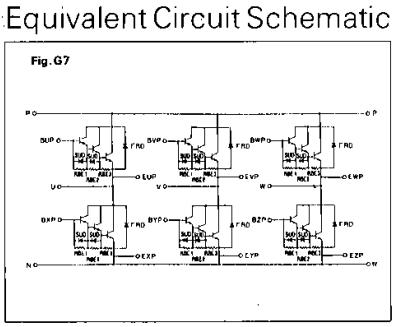

6DI100M-050 equivalent circuit schematic

6DI100A-050
6DI100A-050
Other

Data Sheet
Negotiable
