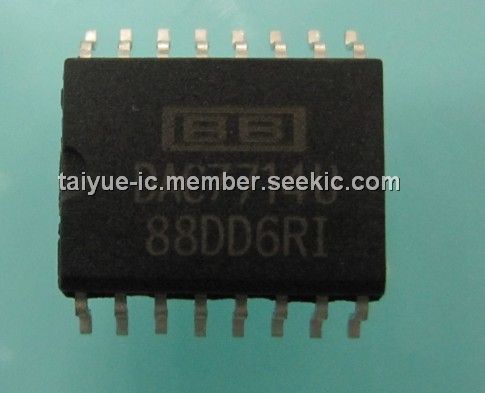

DAC7714U

output Digital-to-Analog Converter, 12BIT, 16SOIC, 250mW, –0.3V to +32V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $10.30~10.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $10.30~10.50

PartNumber:: DAC7714U

Brand:: Burr-Brown Corporation - BB | Pack: DIP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Rosa Wang's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-03-02

From Other Seller

Part Number:DAC7714U
US $10.30 - 10.50
EKZE250ELL152MK25S

US $0.10 - 1.00 / Piece
(0) Remove
ECA1HHG220

US $2.00 - 10.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The DAC7714U is a quad, serial input, 12-bit, voltage output Digital-to-Analog Converter (DAC) with guaranteed 12-bit monotonic performance over the –40℃ to +85℃ temperature range. An asynchronous reset clears all registers to either mid-scale (800H) or zero-scale (000H), selectable via the RESETSEL pin. The DAC7714U can be powered from a single +15V supply or from dual +15V and –15V supplies. The applications of the DAC7714U include ate pin electronics, process control, closed-loop servo-control, motor control and data acquisition systems.

Parametrics

DAC7714U absolute maximum ratings: (1)VCC to VSS: –0.3V to +32V; (2)VCC to GND: –0.3V to +16V; (3)VSS to GN: +0.3V to –16V; (4)VREFH to GND: –9V to +11V; (5)VREFL to GND (VSS = –15V): –11V to +9V; (6)VREFL to GND (VSS = 0V): –0.3V to +9V; (7)VREFH to VREFL: –1V to +22V; (8)Digital Input Voltage to GND: –0.3V to 5.8V; (9)Digital Output Voltage to GND: –0.3V to 5.8V; (10)Maximum Junction Temperature: +150℃; (11)Operating Temperature Range: –40 to +85℃; (12)Storage Temperature Range: –65 to +150℃; (13)Lead Temperature (soldering, 10s): +300℃.

Features

DAC7714U features: (1)low power: 250mW (max); (2)unipolar or bipolar operation; (3)settling time: 10μs to 0.012%; (4)12-bit linearity and monotonicity: –40 to +85℃; (5)user selectable reset to mid-scale; (6)small SO-16 package.
