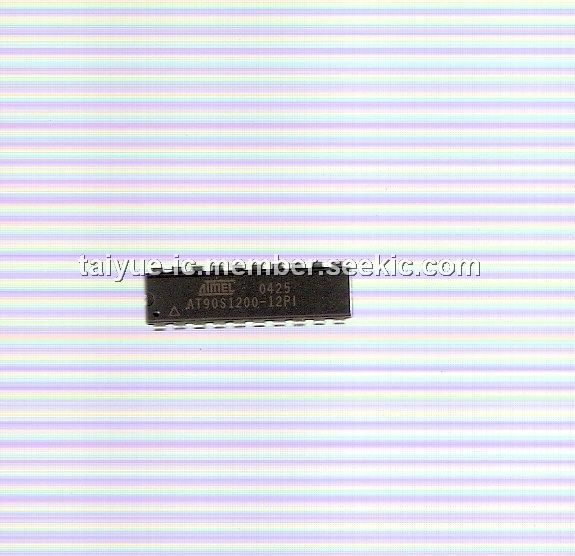

AT90S1200-12PI

12MHZ, 20DIP, AT90S1200-12PI, -1.0V to +13.0V, 40.0 mA, CMOS 8-bit microcontroller

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.80~1.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.80~1.00

PartNumber:: AT90S1200-12PI

Brand:: ATMEL Corporation - ATMEL | Pack: DIP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Rosa Wang's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-02-28

From Other Seller

Part Number:AT90S1200-12PI
US $0.80 - 1.00
A50L-0001-0175

US $100.00 - 100.00 / Piece
(0) Remove
CM2030-A0TR

US $0.92 - 2.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

The AT90S1200-12PI is a low-power CMOS 8-bit microcontroller based on the AVR RISC architecture. By executing powerful instructions in a single clock cycle, the AT90S1200-12PI achieves throughputs approaching 1 MIPS per MHz allowing the system designer to optimize power consumption versus processing speed. The AVR core of the AT90S1200-12PI combines a rich instruction set with the 32 general purpose working registers. All the 32 registers are directly connected to the Arithmetic Logic Unit (ALU), allowing two independent registers to be accessed in one single instruction executed in one clock cycle. The resulting architecture of the AT90S1200-12PI is more code efficient while achieving throughputs up to ten times faster than conventional CISC microcontrollers.

Parametrics

AT90S1200-12PI absolute maximum ratings: (1)Operating Temperature: -55℃ to +125℃; (2)Storage Temperature: -65℃ to +150℃; (3)Voltage on Any Pin Except RESET with Respect to Ground: -1.0V to VCC+0.5V; (4)Voltage on RESET with Respect to Ground: -1.0V to +13.0V; (5)Maximum Operating Voltage: 6.6V; (6)DC Current per I/O Pin: 40.0 mA; (7)DC Current VCC and GND Pins: 200.0 mA.

Features

AT90S1200-12PI features: (1)AVR - High Performance and Low Power RISC Architecture; (2)89 Powerful Instructions - Most Single Clock Cycle Execution; (3)1K bytes of In-System Reprogrammable Flash: SPI Serial Interface for Program Downloading, Endurance: 1,000 Write/Erase Cycles; (4)64 bytes EEPROM: Endurance: 100,000 Write/Erase Cycles; (5)128 bytes Internal RAM; (6)32 x 8 General Purpose Working Registers.
