Product Summary

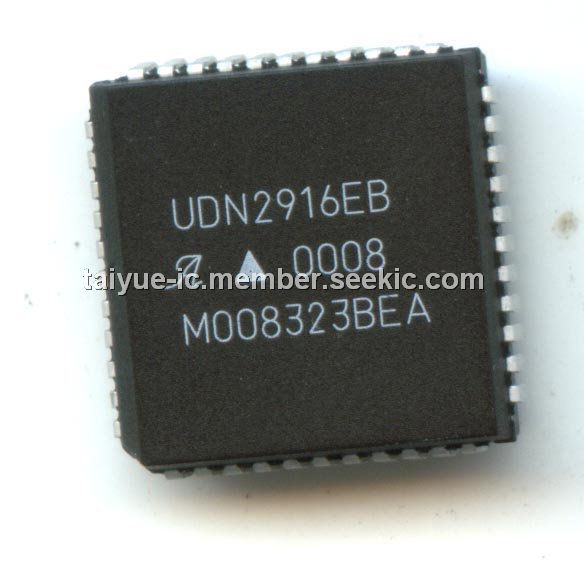

The UDN2916EB is a dual full-bridge PWM motor driver. The UDN2916EB is designed to drive both windings of a bipolar stepper motor or bidirectionally control two dc motors. Both bridges are capable of sustaining 45 V and include internal pulse-width modulation (PWM) control of the output current to 750 mA. The UDN2916EB outputs have been optimized for a low output saturation voltage drop (less than 1.8 V total source plus sink at 500 mA).

Parametrics

UDN2916EB absolute maximum ratings: (1)Motor Supply Voltage, VBB: 45 V; (2)Output Current, IOUT(Peak): +1.0 A; (Continuous): +750 mA; (3)Logic Supply Voltage, VCC: 7.0 V; (4)Logic Input Voltage Range, VIN: -0.3 V to VCC+0.3 V; (5)Output Emitter Voltage, VE: 1.5 V; (6)Operating Temperature Range, TA: -20 to +85℃; (7)Storage Temperature Range, TS: -55 to +150℃.

Features

UDN2916EB features: (1)750 mA Continuous Output Current; (2)45 V Output Sustaining Voltage; (3)Internal Clamp Diodes; (4)Internal PWM Current Control; (5)Low Output Saturation Voltage; (6)Internal Thermal Shutdown Circuitry; (7)Similar to Dual PBL3717, UC3770.

Diagrams

UDN2916EB pin configuration

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
UDN2916EB
UDN2916EB


IC MOTOR DRIVER PWM DUAL 44PLCC

Data Sheet

Negotiable
UDN2916EB-T
UDN2916EB-T


IC MOTOR DRIVER PWM DUAL 44PLCC

Data Sheet

0-432: $2.48
UDN2916EBTR
UDN2916EBTR


IC MOTOR DRIVER PWM DUAL 44PLCC

Data Sheet

Negotiable
UDN2916EBTR-T
UDN2916EBTR-T


IC MOTOR DRIVER PWM DUAL 44PLCC

Data Sheet

Negotiable
