MD2202-D32-X-P

Disk OnChip, 32-pin DIP, MD2202-D32-X-P, 5V, 16MB to 576MB, -10 to 10 mA

Rated 5 Rating 5 | reviews | Write a review

Price:: US $4.00~5.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $4.00~5.00

PartNumber:: MD2202-D32-X-P

Brand:: M Systems International, Inc. - MSYSTEMS | Pack: DIP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Rosa Wang's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-03-02

From Other Seller

Part Number:MD2202-D32-X-P
US $4.00 - 5.00
A50L-0001-0175

US $100.00 - 100.00 / Piece
(0) Remove
AT45DB161D-SU

US $1.50 - 3.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

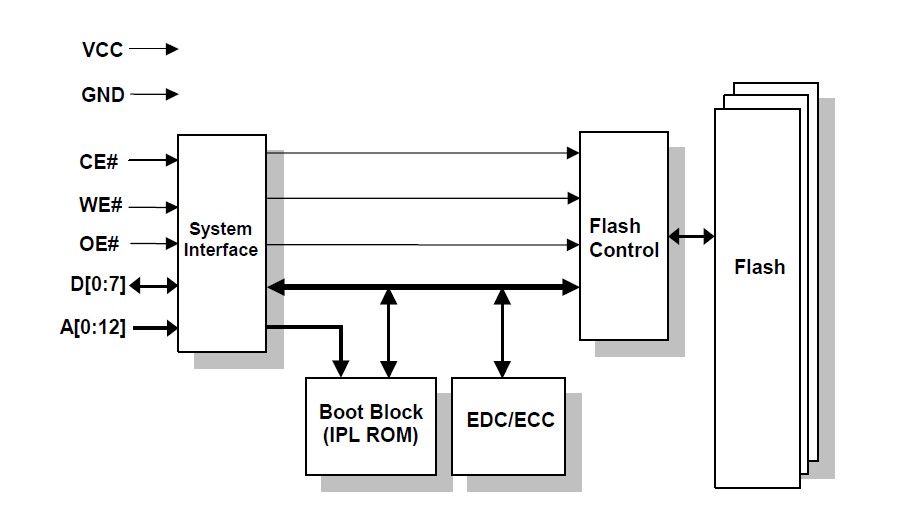

The Disk OnChip 2000 product line of the MD2202-D32-X-P is the second-generation of M-Systems DiskOnChip series of products. The MD2202-D32-X-P provides a small, single-chip, solid-state flash disk in a standard 32-pin DIP package. Combining a disk controller with flash memory on a single chip, the MD2202-D32-X-P is the solution where minimal weight, space, and power consumption are essential. In consequence, the MD2202-D32-X-P finds use today in a wide range of products, such as information appliances, set-top boxes, thin clients, thin servers, network computers, and embedded, portable computers. By placing MD2202-D32-X-P in a standard socket, physical space requirements are reduced. Unlike standard IDE drives, no cables or extra space are required. The applications of the MD2202-D32-X-P include: Embedded systems, Internet access devices, Internet set-top boxes/ITV, Web browsers, WBT, thin clients, network computers, Routers, networking, Web phones, car PCs, DVD, HPC, Point of sale, industrial PCs, Telecom, medical.

Parametrics

MD2202-D32-X-P absolute maximum ratings: (1)DC supply voltage VCCS: -0.5 to 4.6 V ; (2)Input pin voltage VIN: -0.5 to VCC + 0.3 V; (3)Input pin current IIN Not Specified: -10 to 10 mA.

Features

MD2202-D32-X-P features: (1)Single-chip plug-n-play flash disk; (2)Low power, single 3.3V or 5V power supply; (3)16MB to 576MB capacity (1GB in 2002); (4)Pinout and structure compatible with DiskOnChip Millennium DIP 8MB; (5)Simple, easy-to-integrate interface; (6)32-pin DIP, JEDEC standard, EEPROM-compatible pinout; (7)8KB sized memory window; (8)Boot OS capability; (9)Embedded TrueFFS. software provides.
