Product Summary

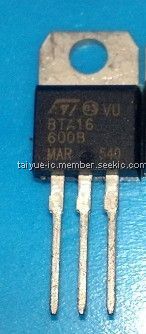

The BTA16-600B is a high performance glass passivated PNPN device. The device is suitable for general purpose applications where high surge current capability is required. Applications of the BTA16-600B include phase control and static switching on inductive or resistive load.

Parametrics

BTA16-600B absolute maximum ratings: (1)IT(RMS), RMS on-state current: 16A; (2)ITSM, Non repetitive surge peak on-state current (Tj initial= 25℃): 170A; (3)I2t, I2t value at tp = 10 ms: 128 A2s; (4)dI/dt, Critical rate of rise of on-state current: 50A/μs; (5)Tstg, storage temperature range: -40 to 150℃; (6)Tj, operating junction temperature range: - 40 to + 125℃; (7)Tl, Maximum lead temperature for soldering during 10 s at 4.5 mm; (8)from case: 260℃.

Features

BTA16-600B features: (1)high surge current capability; (2)commutation: (dV/dt)c > 10V/ms; (3)BTA Family: insulatingvoltage= 2500V(RMS) (UL recognized).

Diagrams

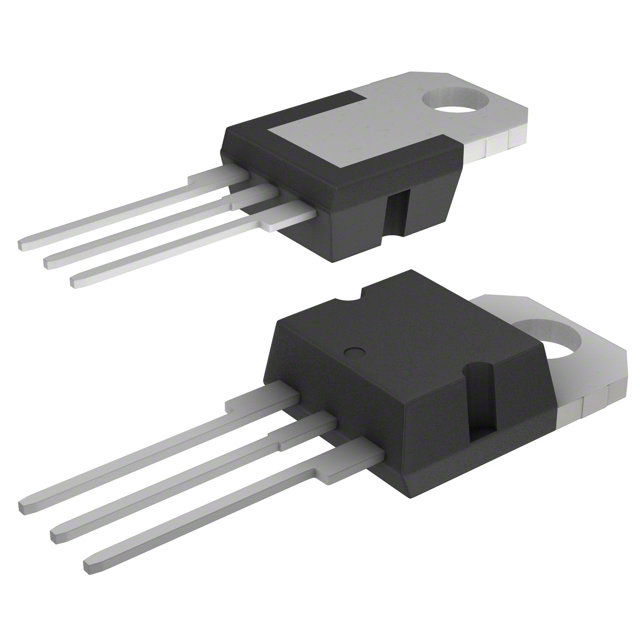

BTA16-600B diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
BTA16-600B
BTA16-600B
Other

Data Sheet
Negotiable
BTA16-600BRG
BTA16-600BRG
STMicroelectronics
Triacs 16 Amp 600 Volt
Data Sheet
0-1: $0.85
1-10: $0.76
10-100: $0.70
100-250: $0.62
BTA16-600BW3G
BTA16-600BW3G
ON Semiconductor
Triacs 16A 50mA 600V IGT 3 QUAD INTERNL ISLTD
Data Sheet
0-1: $0.82
1-25: $0.80
25-100: $0.64
100-250: $0.57
BTA16-600BWRG
BTA16-600BWRG
STMicroelectronics
Triacs 16 Amp 600 Volt
Data Sheet
0-1: $0.71
1-10: $0.63
10-100: $0.58
100-250: $0.51
BTA16-600BW
BTA16-600BW

TRIAC 600V 16A TO-220AB
Data Sheet
Negotiable
